Part

Number

Winding

Turns

Operating

Frequency

32B32B32BRange

Insertion Loss

Pin Connection

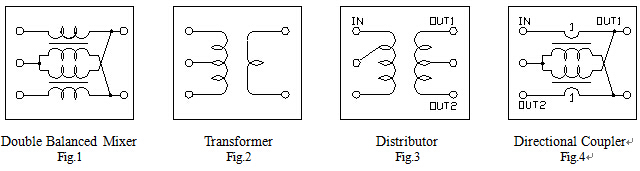

Fig.

0B0B0BDouble Balanced Mixer

FB001T-1003AS

FB001T-1005AS

FB001T-1008AS

FB001T-1011AS

FB001T-1012AS

FB001T-1013AS

3x4

2x4

4x4

5x4

1x4

2x4

8MHz~800MHz

400MHz~1.3GHz

6MHz~600MHz

5MHz~500MHz

50MHz~400MHz

10MHz~1.0GHz

3.5

  4

2.5

  2

 10

  6

dB Max.

dB Max.

dB Max.

dB Max.

dB Max.

dB Max.

1

1

1

1

1

1

Frequency Mixer

Pri  Sec

FB001T-1024AS

FB001T-1052AS

FB001T-1085AS

FB001T-1086AS

FB001T-1087AS

3 x 2  3

2 x 2  2

1 x 2  1

4 x 2  4

5 x 2  5

3.5MHz~470MHz

9MHz~350MHz

—

2.2MHz~400MHz

1.5MHz~300MHz

3

3

3

3

3

dB Max.

dB Max.

dB Max.

dB Max

dB Max

2

2

2

2

2

1B1B1BDistributor

FB002T-1014AS

—

20MHz~600MHz

IN to OUT-1,2

4.5 dB Max.

OUT-1 to OUT-2

(ISOLATION)

10 dB Min.

3

2B2B2BDirectional Coupler

FB001T-1006AS

5

6MHz~600MHz

IN to OUT-1  0.9 dB Max.

IN to OUT-2  13~16 dB

4

FB001T-1007AS

6

6MHz~600MHz

IN to OUT-1  0.8 dB Max.

IN to OUT-2  15~17 dB

4

FB001T-1015AS

4

6MHz~600MHz

IN to OUT-1  1.3 dB Max.

IN to OUT-2  11~14 dB

4
