FB006T Series

Part

Number

Winding

Turns

Operating Frequency

Range

Insertion Loss

(dB)

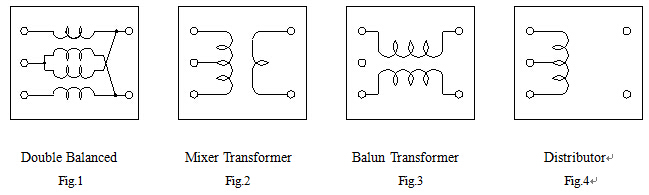

Pin Connection

Fig.

24B24B24BDouble Balanced Mixer

FB006T-1007AS

FB006T-1009AS

FB006T-1006AS

FB006T-1010AS

FB006T-1018AS

2

3

3

4

5

25MHz ~ 2000MHz

6MHz ~ 2000MHz

150MHz ~ 2300MHz

3.5MHz ~ 2000MHz

2MHz ~ 2000MHz

3

3

3

3

3

1

1

1

1

1

FrequencF mixer

FB006T-1025AS

FB006T-1019AS

FB006T-1026AS

1

2

3

—

8MHz ~ 750MHz

3.5MHz ~ 700MHz

3

3

2

2

2

Balun transformer

FB006T-1021AS

FB006T-1022AS

FB006T-1023AS

FB006T-1024AS

1.5

2.5

3.5

4.5

20MHz ~ 750 MHz

4.5MHz ~ 3300MHz

2.3MHz ~ 2700MHz

1.5MHz ~ 2400MHz

3

3

3

3

3

3

3

3

29B29B29BDistributor

FB006T-1079AS

FB006T-1076AS

2

3

1300MHz ~ 1700MHz

800MHz ~ 1000MHz

IN to OUT-1,2

4.5dB Max.

OUT-1 to OUT-2

(isolation)

15dB Min.

4

4
